ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction
Pedon ID: 87GA219001
Layer Natural Key: 88P00297
Horizon: Ap   0.0-15.0 cm
van Genuchten Retention Parameters from Rosetta*
qrqslog10(a)log10(n)
0.03230.3200-1.31350.1559
Measured Soil Properties
Rock FragmentOrganic CarbonSandSiltClayDb33
% vol% wt% wt% wt% wtg/cc
30.5574.716.78.61.73


Sample Typeq6 kPaq10 kPaq33 kPaq100 kPaq200 kPaq500 kPaq1500 kPa
 cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3
Clod  0.12
<2 mm air-dry   0.12 0.06

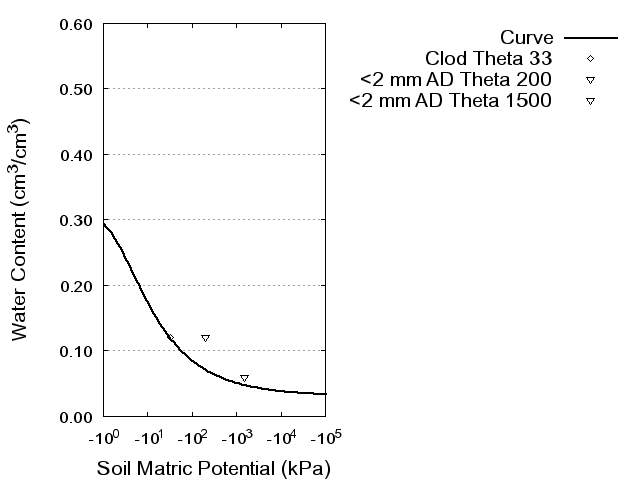

Soil Water Retention Curve




*Rosetta Reference


ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction
Pedon ID: 87GA219001
Layer Natural Key: 88P00298
Horizon: BE   15.0-38.0 cm
van Genuchten Retention Parameters from Rosetta*
qrqslog10(a)log10(n)
0.05150.3595-1.46730.1219
Measured Soil Properties
Rock FragmentOrganic CarbonSandSiltClayDb33
% vol% wt% wt% wt% wtg/cc
10.1855.724.120.21.62


Sample Typeq6 kPaq10 kPaq33 kPaq100 kPaq200 kPaq500 kPaq1500 kPa
 cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3
Clod  0.21
<2 mm air-dry   0.18 0.12


Soil Water Retention Curve




*Rosetta Reference


ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction
Pedon ID: 87GA219001
Layer Natural Key: 88P00299
Horizon: Bt1   38.0-56.0 cm
van Genuchten Retention Parameters from Rosetta*
qrqslog10(a)log10(n)
0.08560.4439-1.47250.1071
Measured Soil Properties
Rock FragmentOrganic CarbonSandSiltClayDb33
% vol% wt% wt% wt% wtg/cc
20.1543.019.137.91.41


Sample Typeq6 kPaq10 kPaq33 kPaq100 kPaq200 kPaq500 kPaq1500 kPa
 cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3
Clod  0.28
<2 mm air-dry   0.24 0.19


Soil Water Retention Curve




*Rosetta Reference


ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction
Pedon ID: 87GA219001
Layer Natural Key: 88P00300
Horizon: Bt2   56.0-97.0 cm
van Genuchten Retention Parameters from Rosetta*
qrqslog10(a)log10(n)
0.10880.4102-1.32610.0767
Measured Soil Properties
Rock FragmentOrganic CarbonSandSiltClayDb33
% vol% wt% wt% wt% wtg/cc
20.0335.117.547.41.59


Sample Typeq6 kPaq10 kPaq33 kPaq100 kPaq200 kPaq500 kPaq1500 kPa
 cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3
Clod  0.35
<2 mm air-dry   0.35 0.29


Soil Water Retention Curve




*Rosetta Reference


ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction
Pedon ID: 87GA219001
Layer Natural Key: 88P00301
Horizon: Bt3   97.0-137.0 cm
van Genuchten Retention Parameters from Rosetta*
qrqslog10(a)log10(n)
0.08200.4000-1.46450.0623
Measured Soil Properties
Rock FragmentOrganic CarbonSandSiltClayDb33
% vol% wt% wt% wt% wtg/cc
10.0337.123.039.91.63


Sample Typeq6 kPaq10 kPaq33 kPaq100 kPaq200 kPaq500 kPaq1500 kPa
 cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3
Clod  0.36
<2 mm air-dry   0.36 0.29

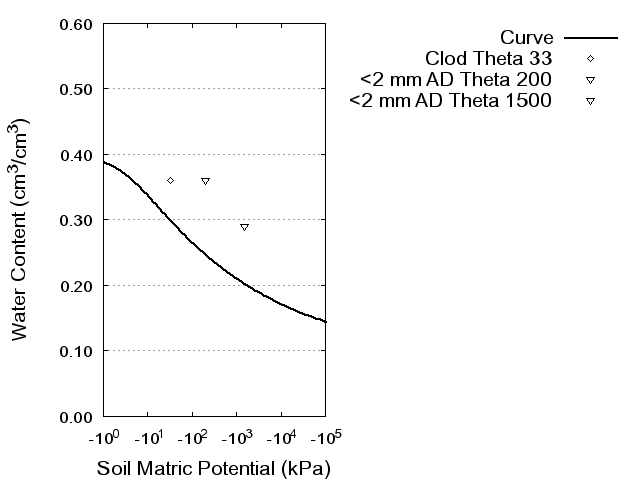

Soil Water Retention Curve




*Rosetta Reference


ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction
Pedon ID: 87GA219001
Layer Natural Key: 88P00302
Horizon: BC   137.0-171.0 cm
van Genuchten Retention Parameters from Rosetta*
qrqslog10(a)log10(n)
0.07600.3871-1.49560.0701
Measured Soil Properties
Rock FragmentOrganic CarbonSandSiltClayDb33
% vol% wt% wt% wt% wtg/cc
10.0243.224.632.21.64


Sample Typeq6 kPaq10 kPaq33 kPaq100 kPaq200 kPaq500 kPaq1500 kPa
 cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3cm3/cm3
Clod  0.34
<2 mm air-dry   0.35 0.26


Soil Water Retention Curve




*Rosetta Reference NSSC SSL Report Creation
