NSSC SSL Report Creation

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 98TN021001
Layer Natural Key: 98P02130
Horizon: Ap 0.0-12.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.1133	0.5504	-3.0095	0.4193

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
4	2	7.9	69.7	22.4	1.02

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.50
<2 mm air-dry 0.10

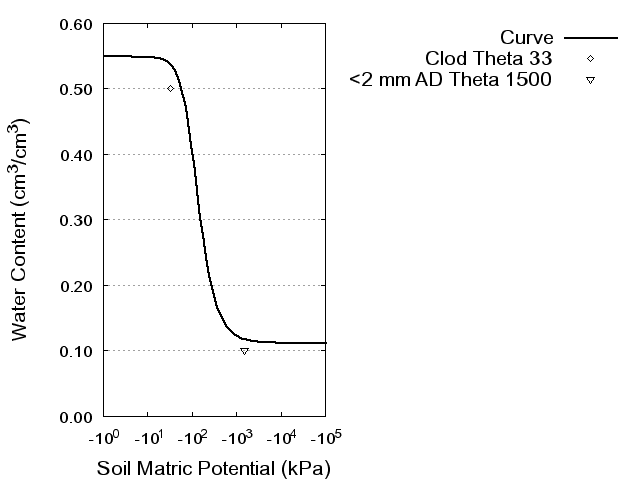

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 98TN021001
Layer Natural Key: 98P02131
Horizon: Bt1 12.0-28.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0661	0.4346	-2.4262	0.1941

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
3	0	7.7	66.1	26.2	1.44

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.34
<2 mm air-dry 0.15

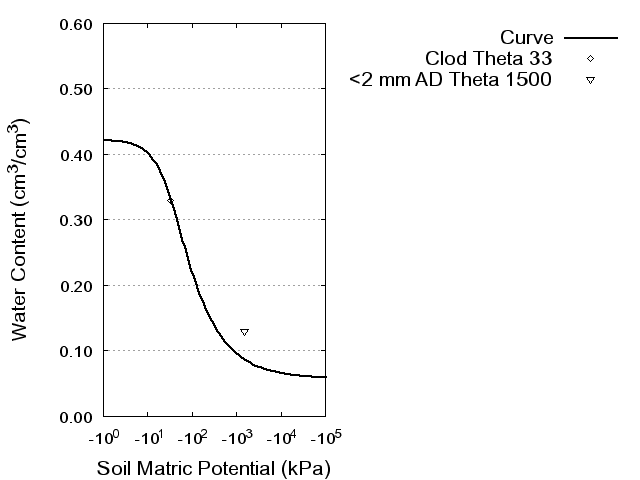

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 98TN021001
Layer Natural Key: 98P02132
Horizon: Bt2 28.0-48.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0589	0.4231	-2.4913	0.2175

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
6	0	10.9	65.6	23.5	1.43

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.33
<2 mm air-dry 0.13

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 98TN021001
Layer Natural Key: 98P02133
Horizon: 2Bt3 48.0-74.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0850	0.5025	-2.8995	0.3504

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
41	0	17.3	57.7	25.0	1.11

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.44
<2 mm air-dry 0.11

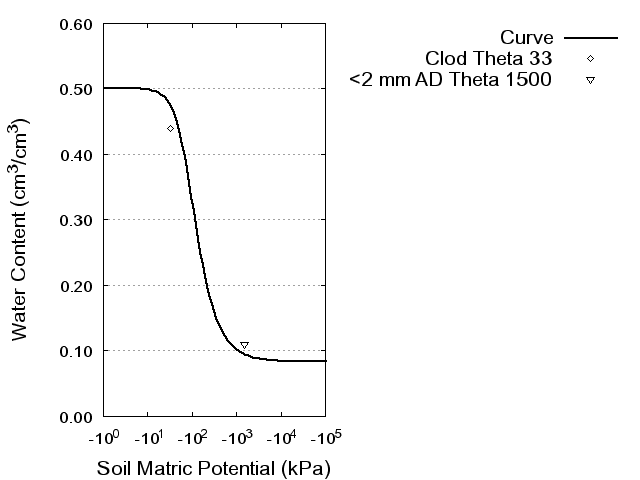

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 98TN021001
Layer Natural Key: 98P02134
Horizon: 2Bt4 74.0-124.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0841	0.4973	-2.3517	0.1436

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
11	0	11.2	41.5	47.3	1.34

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.42
<2 mm air-dry 0.24

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 98TN021001
Layer Natural Key: 98P02135
Horizon: 2Bt5 124.0-150.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0973	0.5334	-2.7611	0.2033

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
18	0	10.3	37.4	52.3	1.28

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.49
<2 mm air-dry 0.26

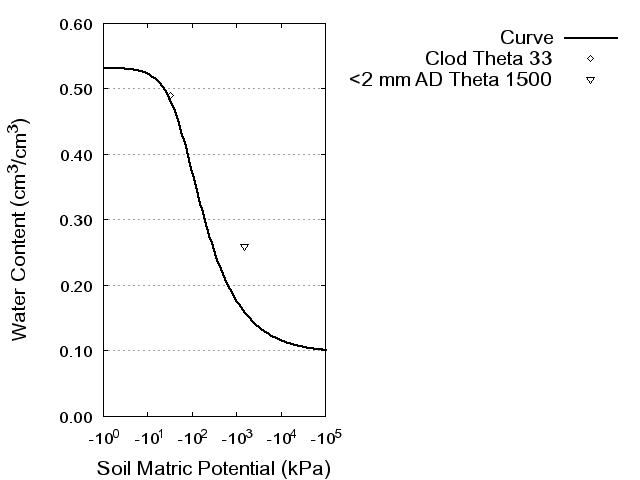

Soil Water Retention Curve

^*Rosetta Reference NSSC SSL Report Creation
