NSSC SSL Report Creation

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 00OR023001
Layer Natural Key: 00P06978
Horizon: A1 2.0-8.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0278	0.5303	-2.0913	0.1511

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
9	4	49.9	41.7	8.4	0.75

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.35 0.34
<2 mm air-dry 0.08
<2 mm field moist 0.10

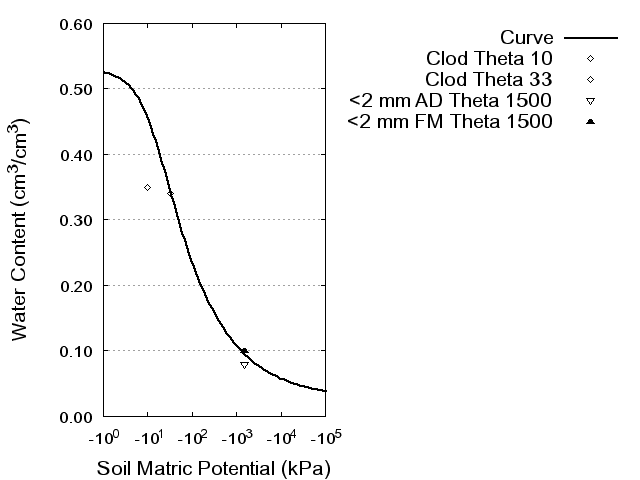

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 00OR023001
Layer Natural Key: 00P06979
Horizon: A2 8.0-38.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0472	0.4914	-2.6395	0.2597

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
8	2	53.4	40.2	6.4	0.93

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.42 0.41
<2 mm air-dry 0.09
<2 mm field moist 0.12

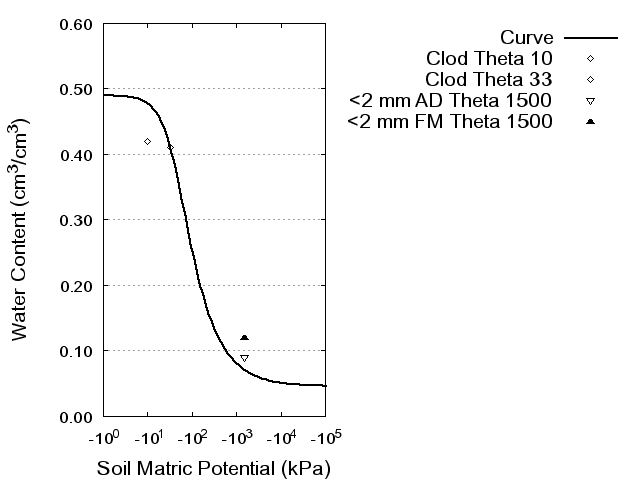

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 00OR023001
Layer Natural Key: 00P06980
Horizon: A3 38.0-66.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0378	0.4723	-1.5743	0.1228

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
14	1	48.8	41.0	10.2	1.09

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.27 0.25
<2 mm air-dry 0.12
<2 mm field moist 0.14

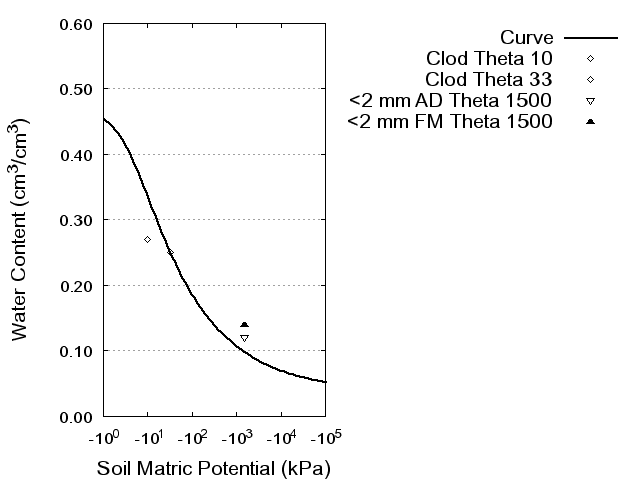

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 00OR023001
Layer Natural Key: 00P06981
Horizon: 2Ab 66.0-81.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0375	0.4765	-1.7912	0.1314

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
23	1	46.6	40.3	13.1	1.07

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.30 0.28
<2 mm air-dry 0.12
<2 mm field moist 0.13

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 00OR023001
Layer Natural Key: 00P06982
Horizon: 2Btb1 81.0-105.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0487	0.4280	-2.0192	0.1444

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
34	1	47.3	40.4	12.3	1.31

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.32 0.30
<2 mm air-dry 0.14
<2 mm field moist 0.16

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 00OR023001
Layer Natural Key: 00P06983
Horizon: 2Btb2 105.0-160.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0731	0.4938	-2.5407	0.2100

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
	%			% wt	g/cc
	0			19.5	1.17

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.43 0.42
<2 mm air-dry 0.19
<2 mm field moist 0.24

Soil Water Retention Curve

^*Rosetta Reference NSSC SSL Report Creation
