ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 75UT023003
Layer Natural Key: 75C00447
Horizon: A2 5.0-12.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0590	0.4236	-2.7538	0.2701

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	% wt	% wt	% wt	% wt	g/cc
0	0.81	50.5	33.6	15.9	1.38

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.37
<2 mm air-dry 0.13

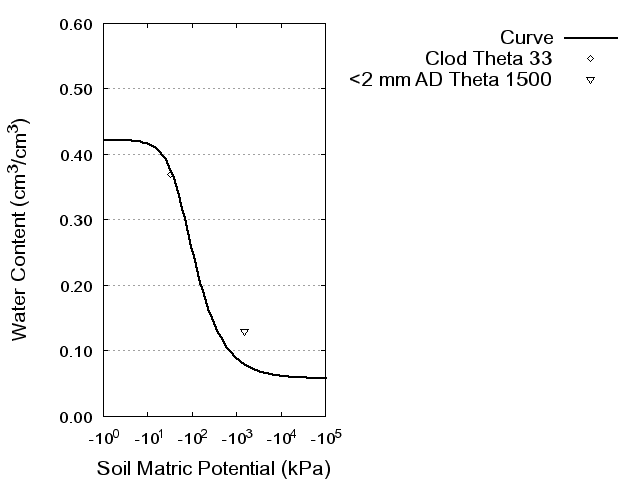

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 75UT023003
Layer Natural Key: 75C00448
Horizon: B1 12.0-27.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0476	0.4232	-2.2608	0.1741

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	% wt	% wt	% wt	% wt	g/cc
2	1.20	51.3	30.8	17.9	1.35

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.31
<2 mm air-dry 0.13

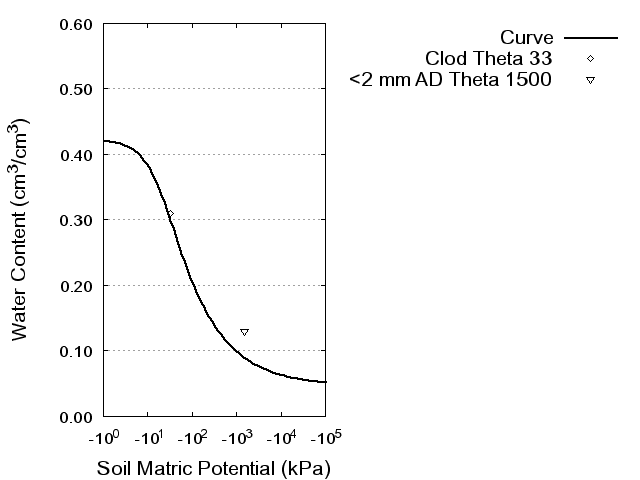

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 75UT023003
Layer Natural Key: 75C00449
Horizon: B2 27.0-36.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0525	0.4497	-2.5235	0.2248

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	% wt	% wt	% wt	% wt	g/cc
1	0.46	49.9	30.7	19.4	1.23

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.36
<2 mm air-dry 0.12

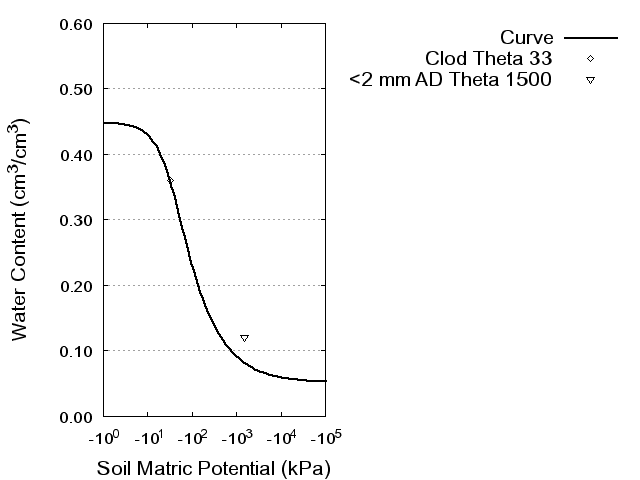

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 75UT023003
Layer Natural Key: 75C00451
Horizon: Bkq1 56.0-78.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0649	0.4428	-2.3403	0.1754

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	% wt	% wt	% wt	% wt	g/cc
1	0.29	29.2	45.4	25.4	1.36

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.35
<2 mm air-dry 0.17

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 75UT023003
Layer Natural Key: 75C00453
Horizon: C 109.0-160.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0256	0.3578	-1.7707	0.1368

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol		% wt	% wt	% wt	g/cc
0		66.5	23.9	9.6	1.55

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.20
<2 mm air-dry 0.07

Soil Water Retention Curve

^*Rosetta Reference NSSC SSL Report Creation
