NSSC SSL Report Creation

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 77NV007031
Layer Natural Key: 78P00533
Horizon: A 0.0-18.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0713	0.4593	-1.3376	0.1430

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	% wt	% wt	% wt	% wt	g/cc
5	1.70	39.5	37.2	23.3	1.22

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.22
<2 mm air-dry 0.14

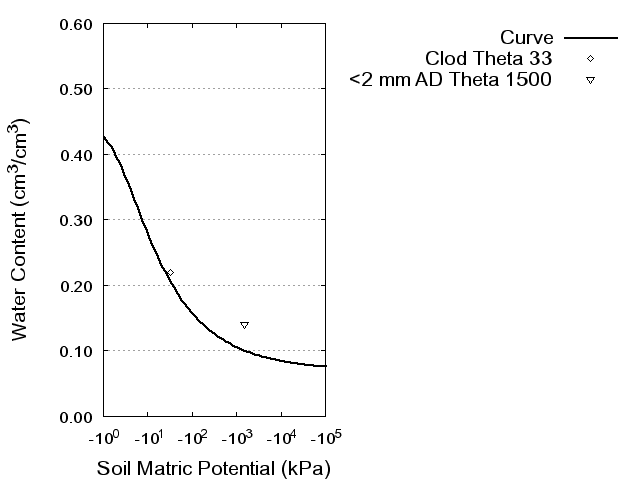

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 77NV007031
Layer Natural Key: 78P00535
Horizon: Bt 40.0-63.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.1056	0.5585	-3.1387	0.2676

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	% wt	% wt	% wt	% wt	g/cc
2	0.55	30.3	19.3	50.4	1.22

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.58
<2 mm air-dry 0.30

Soil Water Retention Curve

^*Rosetta Reference NSSC SSL Report Creation
