ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 78CA033025
Layer Natural Key: 78P02575
Horizon: A1 0.0-5.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0824	0.5559	-2.0008	0.1745

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	% wt	% wt	% wt	% wt	g/cc
43	5.92	41.2	34.7	24.1	0.90

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
<2 mm air-dry 0.15

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 78CA033025
Layer Natural Key: 78P02576
Horizon: A2 5.0-30.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0679	0.5197	-2.5156	0.2262

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	% wt	% wt	% wt	% wt	g/cc
16	1.58	34.4	36.8	28.8	1.00

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.41
<2 mm air-dry 0.14

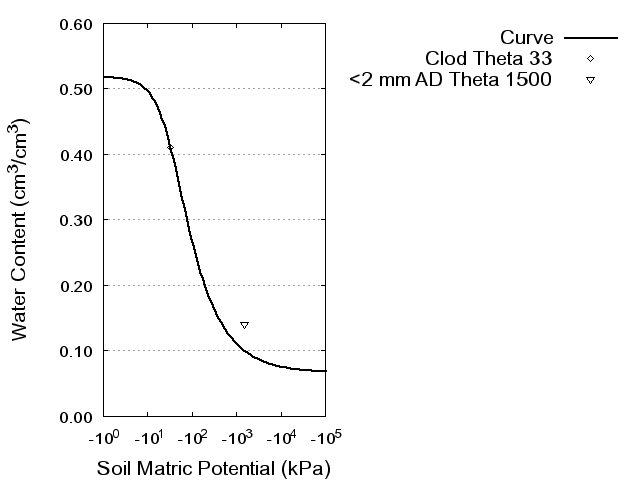

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 78CA033025
Layer Natural Key: 78P02577
Horizon: B 30.0-71.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0629	0.4867	-1.8900	0.1338

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	% wt	% wt	% wt	% wt	g/cc
21	0.82	28.8	46.1	25.1	1.14

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.32
<2 mm air-dry 0.16

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 78CA033025
Layer Natural Key: 78P02578
Horizon: Bt1 71.0-91.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0763	0.4449	-2.0679	0.1869

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	% wt	% wt	% wt	% wt	g/cc
22	0.46	32.4	41.5	26.1	1.30

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
<2 mm air-dry 0.19

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 78CA033025
Layer Natural Key: 78P02579
Horizon: Bt2 91.0-119.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0696	0.4785	-1.9588	0.1292

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	% wt	% wt	% wt	% wt	g/cc
13	0.32	34.4	38.6	27.0	1.23

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.35
<2 mm air-dry 0.19

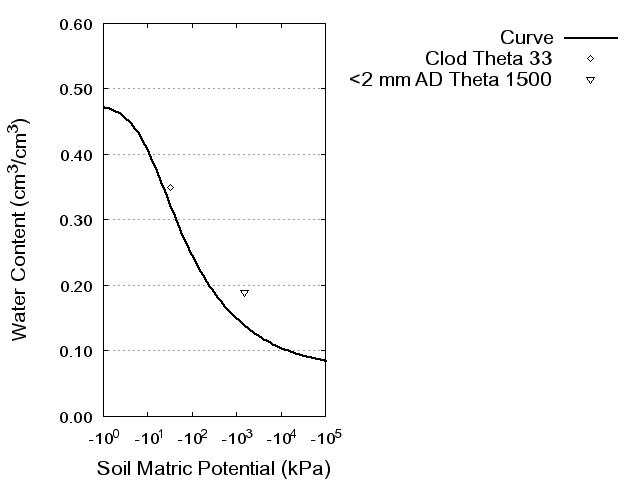

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 78CA033025
Layer Natural Key: 78P02580
Horizon: Bt3 119.0-152.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0862	0.4657	-2.0171	0.1738

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	% wt	% wt	% wt	% wt	g/cc
12	0.18	24.6	42.9	32.5	1.30

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
<2 mm air-dry 0.24

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: 78CA033025
Layer Natural Key: 78P02581
Horizon: Bt4 152.0-183.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0833	0.4892	-1.8588	0.1022

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	% wt	% wt	% wt	% wt	g/cc
12	0.17	24.4	36.2	39.4	1.30

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.38
<2 mm air-dry 0.24

Soil Water Retention Curve

^*Rosetta Reference NSSC SSL Report Creation
