ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: S2012WA053581
Layer Natural Key: 13N02992
Horizon: E2 8.0-16.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0164	0.4949	-1.4790	0.0906

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
0	1	96.1	3.7	0.2	1.07

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.20
<2 mm air-dry 0.03

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: S2012WA053581
Layer Natural Key: 13N02993
Horizon: Bs1 16.0-26.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0408	0.4760	-1.1597	0.1526

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
5	2	69.6	27.9	2.5	1.11

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.15
<2 mm air-dry 0.08

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: S2012WA053581
Layer Natural Key: 13N02994
Horizon: Bs2 26.0-40.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0638	0.5021	-2.1539	0.1396

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
5	2	70.9	25.1	4.0	1.06

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.38
<2 mm air-dry 0.17

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: S2012WA053581
Layer Natural Key: 13N02995
Horizon: Bs3 40.0-74.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0322	0.4701	-1.7491	0.1087

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
3	1	70.1	27.4	2.5	1.09

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.26
<2 mm air-dry 0.09

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: S2012WA053581
Layer Natural Key: 13N02996
Horizon: 2Bw 74.0-95.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0671	0.5108	-2.2612	0.1559

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
25	1	67.2	28.4	4.4	1.01

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.39
<2 mm air-dry 0.16

Soil Water Retention Curve

^*Rosetta Reference

ESTIMATED SOIL WATER RETENTION CURVE
<2 mm Fraction

Pedon ID: S2012WA053581
Layer Natural Key: 13N02997
Horizon: 2C 95.0-150.0 cm

van Genuchten Retention Parameters from Rosetta^*

q_r	q_s	log₁₀(a)	log₁₀(n)
0.0428	0.4239	-1.6168	0.1060

Measured Soil Properties

Rock Fragment	Organic Carbon	Sand	Silt	Clay	Db₃₃
% vol	%	% wt	% wt	% wt	g/cc
63	0	68.7	24.8	6.5	1.32

Sample Type q_{6 kPa} q_{10 kPa} q_{33 kPa} q_{100 kPa} q_{200 kPa} q_{500 kPa} q_{1500 kPa}
cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³ cm³/cm³
Clod 0.24
<2 mm air-dry 0.11

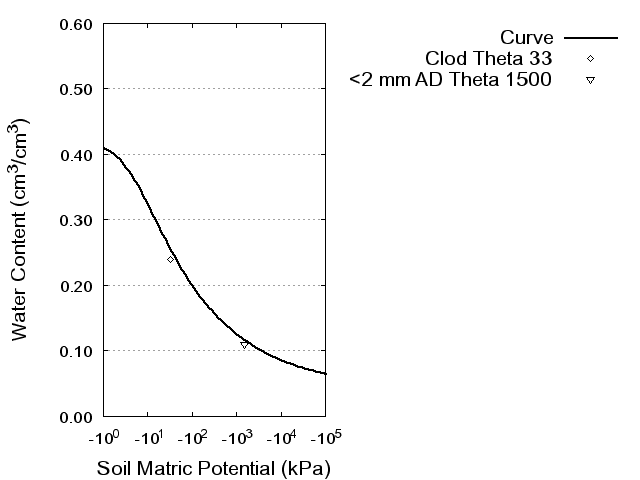

Soil Water Retention Curve

^*Rosetta Reference NSSC SSL Report Creation
